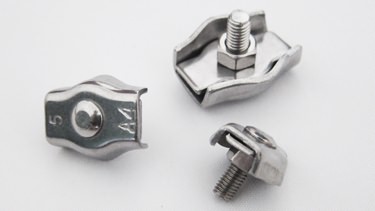

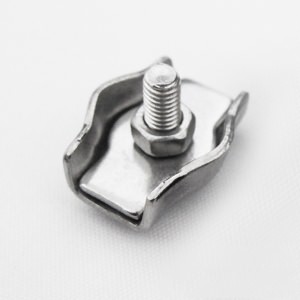

Simplex Wire Rope Clip
- Item Number: 107
- Size: 2mm-10mm
- Material: AISI304 / AISI316
- Product Description: Simplex wire rope clip is made by plate and wire forming, so the production speed is very fast, price is also lower. Please note they are only suitable for 7*19 construction wire rope in general.
Product Introduction


RopeΦ | A | B | C | D | E | Bolt | WT |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | kg |
2 | 15 | 12 | 7 | 1 | 5 | M4×13 | 0.004 |
3 | 17 | 15 | 9 | 1 | 6 | M4×13 | 0.006 |
4 | 20 | 19 | 12 | 1.5 | 6 | M5×17 | 0.010 |
5 | 25 | 20 | 14 | 1.5 | 8 | M5×17 | 0.013 |
6 | 30 | 25 | 17 | 2 | 9.5 | M6×22 | 0.027 |
8 | 38 | 31 | 23 | 2 | 10 | M8×29 | 0.046 |
10 | 48 | 38 | 27 | 2.5 | 14 | M10×31 | 0.090 |
