NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

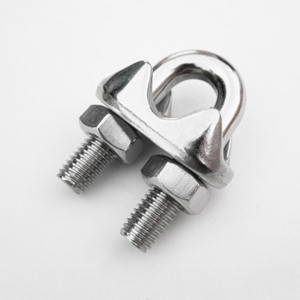

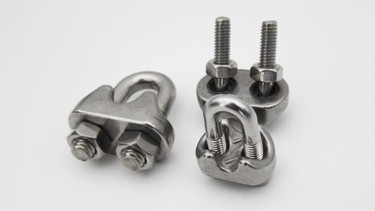

Italian Type Wire Rope Clip

Item Number: 103
Size: 4mm-22mm
Material: AISI304 / AISI316
Product Description: Italian type wire rope clip is widely used in Italy and many Europe countries. Please choose the corresponding specifications according to the diameter of the wire rope.

Product Specifications

Size(ΦS)	A	B	C	D	L	WT	Price
mm	mm	mm	mm	mm	mm	mm	SS304	SS316
4	22	14	8	M4	22	0.010	$0.30	$0.42
5	24	16	9	M5	24	0.020	$0.33	$0.46
6	30	18	11	M6	33	0.030	$0.39	$0.54
8	33	20	12	M6	35	0.040	$0.48	$0.66
10	37	22	14	M8	43	0.070	$0.67	$0.93
12	45	25	16	M10	54	0.120	$1.15	$1.61
14	46	27	18	M10	54	0.150	$1.24	$1.73
16	53	30	20	M10	65	0.200	$1.84	$2.58
18	55	31	21	M12	80	0.240	$2.06	$2.89
20	58	33	22	M12	80	0.270	$2.28	$3.20
22	64	34	23	M12	85	0.310	$2.95	$4.12
