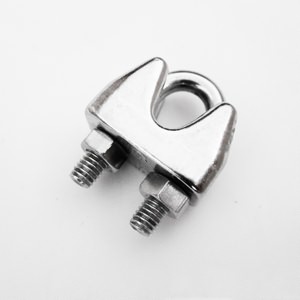

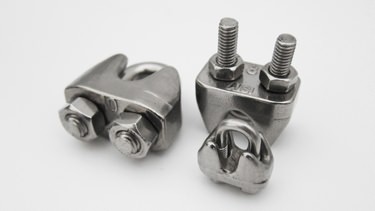

Heavy Type Wire Rope Clip

Item Number: 104
Size: 4mm-22mm
Material: AISI304 / AISI316
Product Description: Ｈeavy type wire rope clip is widely used in Germany and many Europe countries. Please choose the corresponding specifications according to the diameter of the wire rope.

Product Specifications

Size(ΦS)	A	B	H	D	L	W	WT	Price
mm	mm	mm	mm	mm	mm	mm	kg	SS304	SS316
2	16	9.5	10	M3	18	7	0.009	$0.30	$0.30
3	18	9.5	11	M3	19	8	0.010	$0.30	$0.30
4	21	10	13	M4	22	10	0.017	$0.33	$0.46
5	25	12	15	M5	28	12	0.027	$0.39	$0.54
6	28	15	17	M6	34	14	0.043	$0.52	$0.72
8	31	17	20	M6	38	15	0.060	$0.74	$1.03
10	38	19	23	M8	45	19	0.093	$0.96	$1.34
13	47	25	25.5	M10	56	25	0.172	$1.56	$2.19
