NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

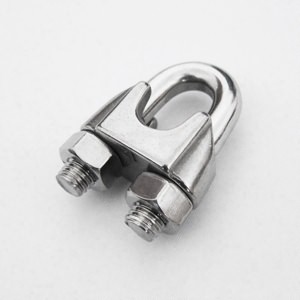

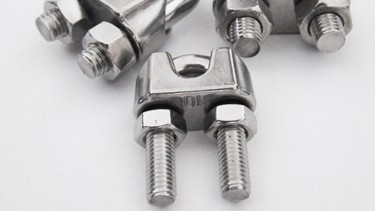

DIN741 Wire Rope Clip

Item Number: 101
Size: 2mm-32mm
Material: AISI304 / AISI316
Product Description: DIN741 is the most widely used kind of wire rope clip because of its reasonable design and lower price. Usually we have a large inventory of them. Please choose the corresponding specifications according to the diameter of the wire rope.

Product Specifications

Size(ΦS)	A	C	H	L	WT	Price
mm	mm	mm	mm	mm	kg	SS304	SS316
2	M3	15.5	10	19	0.007	$0.22	$0.31
3	M4	20	10	23	0.012	$0.24	$0.33
4	M4	20	10	23	0.013	$0.25	$0.35
5	M5	23	10	29	0.017	$0.30	$0.42
6	M6	26	11	33.5	0.028	$0.38	$0.53
8	M6	29	15	35	0.037	$0.47	$0.66
10	M8	34	17	44	0.068	$0.66	$0.93
12	M10	40	20.5	55	0.124	$1.15	$1.61
14	M10	43	21.5	56	0.136	$1.24	$1.73
16	M12	49	25	67	0.211	$1.84	$2.57
18	M12	52	30	79	0.260	$2.06	$2.88
20	M12	52	30	79	0.261	$2.13	$2.98
22	M12	60	34	88	0.345	$2.94	$4.12
24	M12	67	34	86	0.354	$4.12	$5.76
26	M14	65	37	110	0.531	$5.00	$7.00
30	M16	74	43	112	0.661	$5.59	$7.82
32	M16	74	43	115	0.668	$5.59	$7.82
