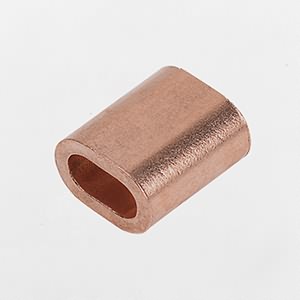

Oval Copper Ferrule

Oval Copper Ferrule
  • Item Number: 134
  • Size: 1mm-18mm
  • Material: Copper
  • Product Description: Oval copper ferrule can fit wire sizes from 1mm to 18mm for every project. Please choose the corresponding specifications according to the diameter of the wire rope.
Product Specifications
Oval Copper Ferrule Drawing
RopeΦ A B S L WT
mm mm mm mm mm kg/1000PCS
1 1.2 2.4 0.65 5 0.320
1.5 1.7 3.4 0.75 6 0.720
2 2.2 4.4 0.85 7 0.820
2.5 2.7 5.4 1.05 9 1.700
3 3.3 6.6 1.25 11 2.900
4 4.4 8.8 1.7 14 6.200
5 5.5 11 2.1 18 12.200
6 6.6 13.2 2.5 21 20.000
8 8.8 17.6 3.3 28 47.000
10 10.9 21.8 4.1 35 90.000
12 13.2 26.4 4.9 42 158.000
14 15.3 30.6 5.8 49 243.000
16 17.5 35 6.7 56 366.000
18 19.6 39.2 7.6 63 529.00
