NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

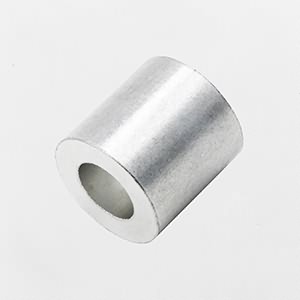

Aluminum Stop Sleeve

Item Number: 131
Size: 3/64"-5/8"
Material: Aluminum
Product Description: Aluminum stop sleeve can fit wire sizes from 3/64" to 5/8" for every project. Please choose the corresponding specifications according to the diameter of the wire rope.

Product Specifications

RopeΦ	A	S	L	WT
inch	mm	mm	mm	kg/1000PCS
3/64	1.54	1.43	4.16	0.236
1/16	1.92	2.22	4.16	0.278
5/64	2.38	1.99	4.16	0.282
3/32	2.90	2.91	7.95	1.050
1/8	3.86	2.43	7.95	0.949
5/32	4.70	3.21	8.73	1.760
3/16	5.54	2.79	8.73	1.690
7/32	6.35	2.38	8.73	1.500
1/4	7.20	5.13	17.46	9.070
5/16	9.53	3.97	17.46	7.460
3/8	11.13	3.17	17.46	6.580
1/2	14.28	6.35	26.98	30.320
9/16	15.88	6.36	31.75	38.520
5/8	17.46	7.15	31.75	47.880
