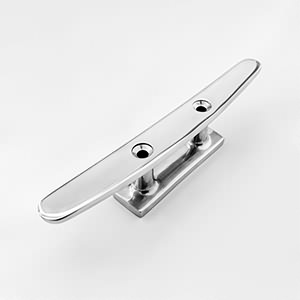

Mast Cleat
- Item Number: 812
- Size: 4''-10''
- Material: AISI316
- Product Description: Mast Cleat
Product Introduction

Size | A | B | C | D | ΦF |
---|---|---|---|---|---|
inch | mm | mm | mm | mm | mm |
4" | 100 | 15.5 | 26.5 | 30 | 4.5 |
5" | 125 | 18 | 30 | 35 | 4.5 |
6" | 150 | 21 | 31 | 45 | 5 |
8" | 200 | 25 | 36 | 55 | 8 |
10" | 250 | 28 | 40 | 65 | 10 |
