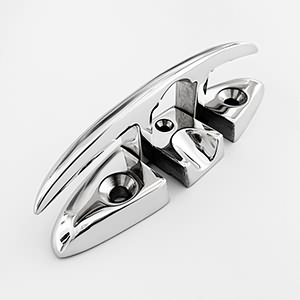

Folding Cleat
- Item Number: 817
- Size: 5''-8''
- Material: AISI316
- Product Description: Folding Cleat
Product Introduction

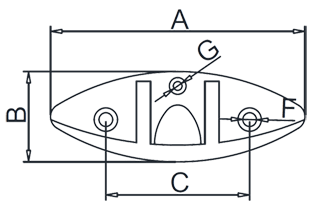

Size | A | B | C | ΦF | ΦG |
---|---|---|---|---|---|
inch | mm | mm | mm | mm | mm |
5" | 129 | 36 | 71 | 5.5 | 4 |
6" | 155 | 55 | 85.5 | 8.2 | 5.2 |
8" | 218 | 75 | 119 | 8.2 | 5 |
