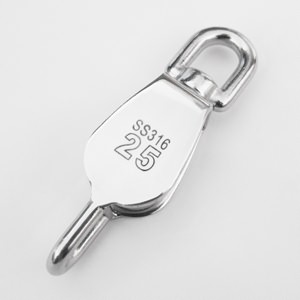

Single Block With Ring
- Item Number: 722
- Size: 25mm-50mm
- Material: AISI304 / AISI316
- Product Description: Single block with ring is designed for indoor and outdoor rope or rope applications, the flexible pulley with heavy duty capacity is suitable for a wide range of applications, such as camping, hiking, fishing, indoor outdoor equipment gear, fitness, hanging wheel, mountaineering and indoor outdoor fitness,etc.
Product Specifications
Size(H) | B | C | D | S | F | E | L |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm |
25 | 19 | 14 | 6 | 10 | 22 | 3 | 88 |
32 | 19 | 14 | 6 | 10 | 24 | 3 | 96 |
50 | 26 | 10 | 8 | 15 | 28 | 3 | 127 |
