NOTE

※ Please be aware that there may be deviation and tolerance in noted measurements.

※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.

※ Specifications may change without prior notification.

※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.

※ Please do not copy and reproduce the contents of our website without any express permission.

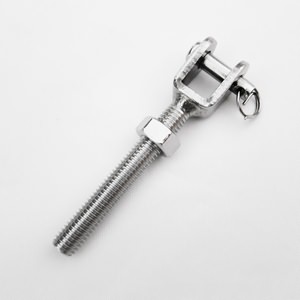

Fork Bolt

Fork Bolt
  • Item Number: 511
  • Size: M5-M20
  • Material: AISI304 / AISI316
  • Product Description: Fork bolt could be used as an adjuster to install or replacement links. It also colud be used as a turnbuckle end.
Product Specifications
Fork Bolt Drawing
Size(A) W T h D L H WT
mm mm mm mm mm mm mm kg
M5 9 2.5 9 5 40 65 0.018
M6 9 2.5 9 5 45 70 0.025
M8 10 3 10 6 53 81 0.038
M10 11 4 10 8 60 92 0.072
M12 11 4 14 10 76 115 0.109
M16 15 6 18 12 100 150 0.287
M20 24 7 30 15 115 180 0.542
