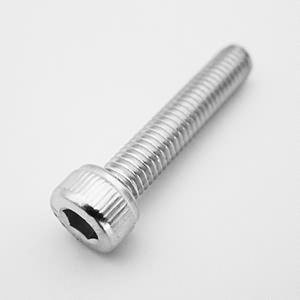

Hexagon Socket Head Cap Bolt
- Item Number: 515
- Size: M3-M20
- Material: AISI304 / AISI316
- Product Description: Hexagon socket head cap bolt is suitable for all interior and exterior applications. Need allen (hex) key when using it.
Product Introduction

Size(A) | L | K | B | D | S |
---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm |
M3 | 6-30 | 3 | 18 | 5.5 | 2.5 |
M4 | 6-40 | 4 | 20 | 7 | 3 |
M5 | 8-50 | 5 | 22 | 8.5 | 4 |
M6 | 8-60 | 6 | 24 | 10 | 5 |
M8 | 12-100 | 8 | 28 | 13 | 6 |
M10 | 16-150 | 10 | 32 | 16 | 8 |
M12 | 20-150 | 12 | 36 | 18 | 10 |
M16 | 30-90 | 16 | 44 | 24 | 14 |
M20 | 50-120 | 20 | 52 | 30 | 17 |
