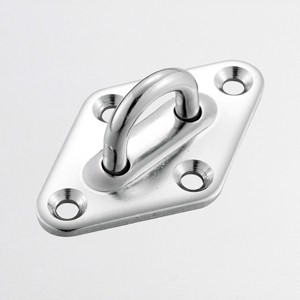

Dimond Eye Plate

Dimond Eye Plate
  • Item Number: 706
  • Size: 5mm-8mm
  • Material: AISI304 / AISI316
  • Product Description: Dimond eye plate is commonly used as deck fittings on boats and yachts, hard-wearing and versatile with uses ranging from vehicle trailers to home DIY.
Product Specifications
Dimond Eye Plate Drawing

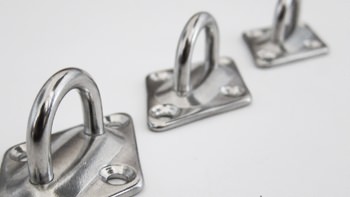

Dimond Eye Plate Detail
Size(ΦD) A B H W T d WT Price
mm mm mm mm mm mm mm kg SS304 SS316
5 60 37 13 15 2.5 4.2 0.032 $0.35 $0.50
6 65 40 18 20 2.5 5.2 0.044 $0.45 $0.60
8 80 50 20 22 3 5.2 0.075 $0.70 $1.00
