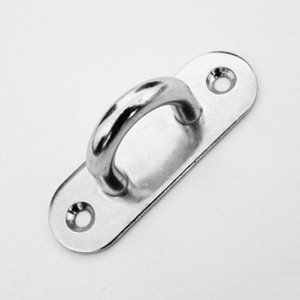

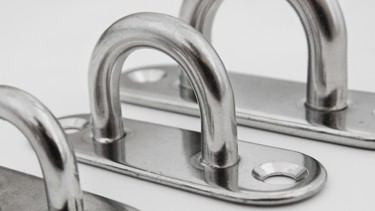

Pad Eye

Item Number: 705
Size: 3mm-9mm
Material: AISI304 / AISI316
Product Description: Pad eye is commonly used as deck fittings on boats and yachts, hard-wearing and versatile with uses ranging from vehicle trailers to home DIY.

Product Specifications

Size(ΦD)	A	B	d	W	H	T	WT	Price
mm	mm	mm	mm	mm	mm	mm	kg	SS304	SS316
3	9	27	2.2	9.5	7	1.8	0.004	$0.22	$0.30
4	12	36	3.2	12.5	10	1.8	0.008	$0.23	$0.33
5	15	45	4.2	14	12.5	2	0.015	$0.27	$0.38
6	20	60	5.2	18	17	2	0.027	$0.37	$0.52
8	26	80	5.2	23	21	3	0.067	$0.66	$0.93
9	32	100	6.2	25	26	3	0.104	$1.70	$2.40
