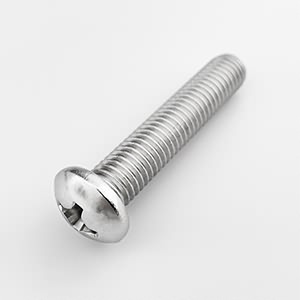

Cross Recessed Pan Head Screw GB818/DIN7985
- Item Number: 540
- Size: M1.6-M10
- Material: AISI304 / AISI316
- Product Description: Cross recessed pan head screw is suitable for all interior and exterior applications. Need phillips screwdriver when using it.
| Size(A) | ΦD | M | K | L |
|---|---|---|---|---|
| mm | mm | mm | mm | mm |
| M1.6 | 3.2 | 1.7 | 1.3 | 2-16 |
| M2 | 4 | 1.9 | 1.6 | 3-25 |
| M2.5 | 5 | 2.7 | 2.1 | 3-32 |
| M3 | 5.6 | 3 | 2.4 | 3-55 |
| M4 | 8 | 4.4 | 3.1 | 4-80 |
| M5 | 9.5 | 4.9 | 3.7 | 5-100 |
| M6 | 12 | 6.9 | 4.6 | 6-100 |
| M8 | 16 | 9 | 6 | 10-100 |
| M10 | 20 | 10.1 | 7.5 | 12-120 |
-
