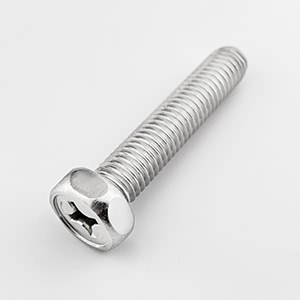

Cross Recess Hexagon Head Screw GB29.2

Cross Recess Hexagon Head Screw GB29.2
  • Item Number: 539
  • Size: M3-M8
  • Material: AISI304 / AISI316
  • Product Description: Cross recess hexagon head screw GB29.2 is suitable for all interior and exterior applications. Need socket wrench or phillips screwdriver when using it.
Product Specifications
Cross Recess Hexagon Head Screw GB29.2 Drawing
Size(A) E S L K M
mm mm mm mm mm mm
M3 6 5.5 5-30 2 3
M4 7.5 7 6-50 2.8 4
M5 8.5 8 6-60 3.5 4.8
M6 10.9 10 8-80 4 6.2
M8 14.2 13 10-100 5.3 7.2
