NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

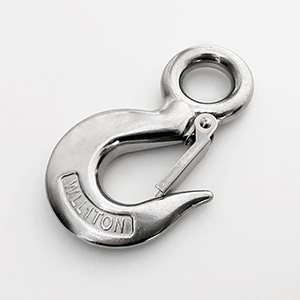

Crane Hook

- Item Number: 421
 - Size: 0.5T - 3.0T
 - Material: AISI304 / AISI316
 - Product Description: Stainless steel chain grab crane hook is used for light lifting application, especially for taking chain load or for silencing noisy anchor chain whilst at anchor.

Product Specifications

| Size | A | C | D | L |
|---|---|---|---|---|
| tons | mm | mm | mm | mm |
| 0.5 | 16.5 | 16 | 8 | 90 |
| 0.75 | 18.5 | 18.5 | 9 | 101.5 |
| 1.0 | 23 | 21 | 11 | 114.5 |
| 1.5 | 28 | 21.5 | 12 | 129.5 |
| 2.0 | 32 | 26 | 15 | 153 |
| 3.0 | 38 | 31.5 | 17.5 | 182.5 |
