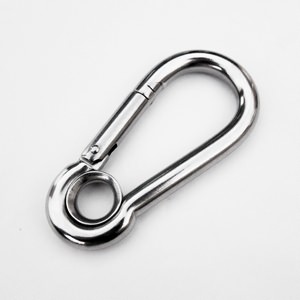

Snap Hook With Eyelet DIN5299A

Snap Hook With Eyelet DIN5299A
  • Item Number: 401
  • Size: 4mm-14mm
  • Material: AISI304 / AISI316
  • Product Description: Snap hook with eyelet DIN5299A is widely used for marine, sports, climbing, architectural, industrial, security... Actually, it's the best tool for quick connecting. Usually we have a large inventory of them.
Product Specifications
Snap Hook With Eyelet DIN5299A Drawing

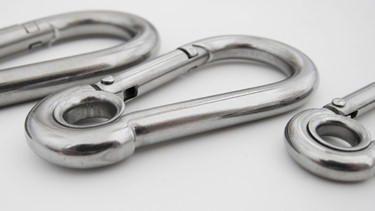

Snap Hook With Eyelet DIN5299A Detail
Size(ΦA) B C D F BL WT Price
mm mm mm mm mm kg kg SS304 SS316
4 20 40 5 7 200 0.008 $0.22 $0.25
5 25 50 5 7 240 0.016 $0.26 $0.34
6 30 60 5 8 240 0.030 $0.31 $0.43
7 35 70 7 8 360 0.043 $0.44 $0.63
8 40 80 10 9 450 0.063 $0.61 $0.89
9 45 90 10 10 500 0.090 $0.78 $1.19
10 50 100 13 11 650 0.121 $1.02 $1.57
11 57 120 13 16 850 0.185 $1.69 $2.49
12 67 140 15 19 1000 0.260 $2.24 $3.39
13 74 160 17 25 1100 0.350 $3.16 $4.77
14 86 180 17 35 1200 0.470 $4.33 $6.59
