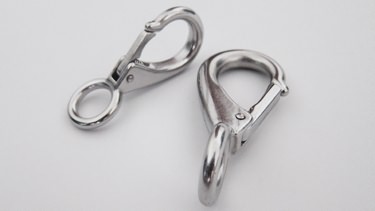

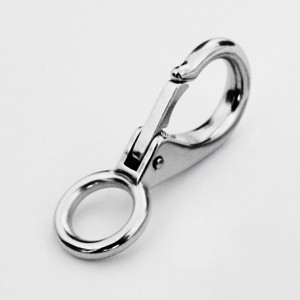

Rigid Snap Hook
- Item Number: 416
- Size: 4mm-7mm
- Material: AISI304 / AISI316
- Product Description: Rigid snap hook is widely used for marine, sports, climbing, architectural, industrial, security... Actually, it's the best tool for quick connecting.
Product Introduction


Size(ΦA) | D | L | S | BL | WT |
---|---|---|---|---|---|
mm | mm | mm | mm | kg | kg |
4(#0) | 10 | 56 | 7 | 160 | 0.023 |
5(#1) | 16 | 72 | 11 | 200 | 0.035 |
6(#2) | 18 | 80 | 13 | 300 | 0.058 |
7(#3) | 19 | 97 | 16 | 450 | 0.101 |
