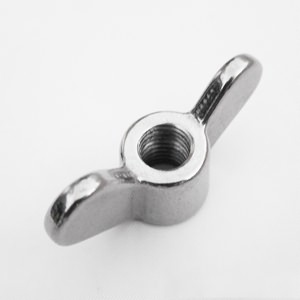

Wing Nut

Wing Nut
  • Item Number: 504
  • Size: M4-M20
  • Material: AISI304 / AISI316
  • Product Description: Wing nut is very useful because we could tighten them just with our hands, and we don't need to worry about looking for tools. In some cases, they can replace the normal nuts completely.
Product Specifications
Wing Nut Drawing
Size(D) K L dk M B ΦY WT
mm mm mm mm mm mm mm kg
M4 11 24 2 6 7 8 0.003
M5 15 28 3 7 8 10 0.006
M6 16 32 3.5 9 10 12 0.011
M8 18 40 4 12 11 14 0.081
M10 22 48 4.5 15 13.5 17.5 0.030
M12 26 58 5 18 16.5 21 0.055
M16 35 72 6.5 23 23.5 28 0.115
M20 41 84 7 23 25.5 33 0.151
