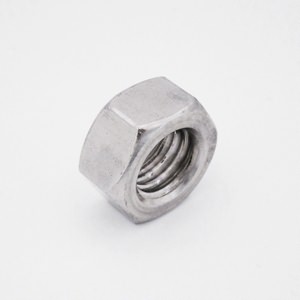

Hexagon Nut DIN934

Hexagon Nut DIN934
  • Item Number: 517
  • Size: M3-M36
  • Material: AISI304 / AISI316
  • Product Description: Hexagon nut DIN934 is suitable for all interior and exterior applications. Need allen (hex) key when using it.
Product Specifications
Hexagon Nut DIN934 Drawing
Size(A) M E S
mm mm mm mm
M3 2.4 6 5.5
M4 3.2 7.7 7
M5 4 8.8 8
M6 5 11 10
M8 6.5 14.4 13
M10 8 18.9 17
M12 10 21.1 19
M16 13 26.8 24
M20 16 33 30
M24 19 39.6 36
M30 24 50.9 46
M36 29 60.8 55
