Toggle Terminal

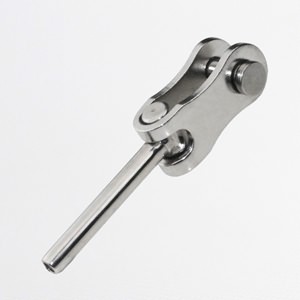

Toggle Terminal
  • Item Number: 117
  • Size: 3mm-10mm
  • Material: AISI304 / AISI316
  • Product Description: Toggle terminal is one of the wire rope end fittings and it's used for diagonal or angle installations and also to minimize the risk of fatigue due to sideway loads.
Product Specifications
Toggle Terminal Drawing
RopeΦ A H D G L
mm mm mm mm mm mm
3 7 15 6 6.5 75
4 10 20 8 7.5 89
5 12 25 9 9 104
6 13 30 12 12.5 127
8 17 40 16 16 163
10 20 45 19 18 184
