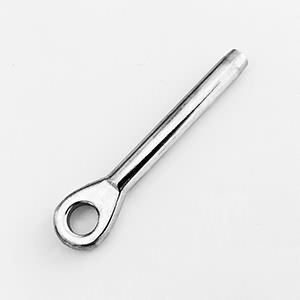

Eye Terminal

Eye Terminal
  • Item Number: 116
  • Size: 3mm-10mm
  • Material: AISI304 / AISI316
  • Product Description: Swage eye terminal fittings are used to put tension onto a wire, and mainly used as an attachment to rigging screws or forks.
Product Specifications
Eye Terminal Drawing

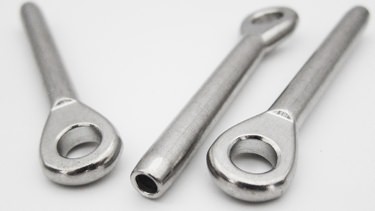

Eye Terminal Detail
RopeΦ D G L
mm mm mm mm
3 6.5 6.5 55
4 8.5 7.5 65
5 10.5 9 80
6 12.5 12.5 94
8 14.5 16 124
10 16.5 18 142
