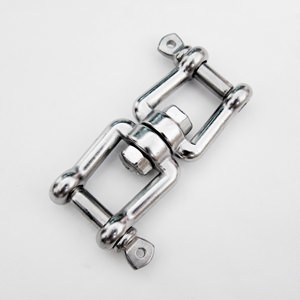

Swivel Jaw And Jaw

Swivel Jaw And Jaw
  • Item Number: 314
  • Size: 6mm-19mm
  • Material: AISI304 / AISI316
  • Product Description: Swivel jaw and jaw is used for some applications which need free rotation at one end or both ends. Such as fishing, mooring, traction...
Product Specifications
Swivel Jaw And Jaw Drawing

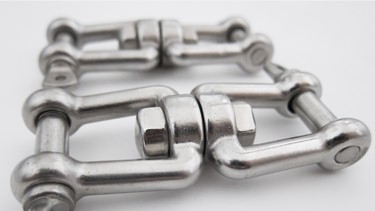

Swivel Jaw And Jaw Detail
Size(ΦA) C D E L BL WT
mm mm mm mm mm kg kg
6 11 6 12 66 1200 0.066
8 16 8 16 94 1900 0.170
10 22 10 20 118 3500 0.330
13 28 13 26 152 5000 0.670
16 37 16 32 188 8500 1.150
19 45 19 38 229 10000 2.080
