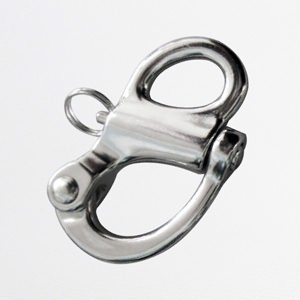

Snap Shackle With Fixed Eye

Snap Shackle With Fixed Eye
  • Item Number: 311
  • Size: 52mm-96mm
  • Material: AISI304 / AISI316
  • Product Description: Snap shackle with fixed eye general purpose snap shackle mainly for spinnaker halyards. Simply release the snap shackle by pulling the ring on the pin.
Product Specifications
Snap Shackle With Fixed Eye Drawing
Size(L) A B WLL
mm mm mm kg
52 12 9 275
66 16 12 500
96 22 16 875
