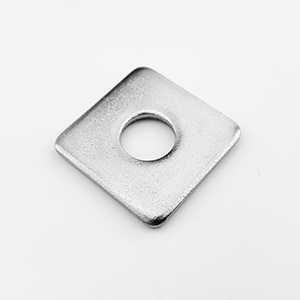

Square Washer DIN436

Square Washer DIN436
  • Item Number: 576
  • Size: M6-M20
  • Material: AISI304 / AISI316
  • Product Description: Square washer DIN436 can increase the contact area between the screw and the machine and eliminate the damage of the spring pad to the machine surface when the screw is unloaded.
Product Specifications
Square Washer DIN436 Drawing
Size ΦA T B
mm mm mm mm
M6 6.6 2.5 20
M8 9 3 25
M10 11 3 30
M12 13.5 4 40
M16 17.5 5 50
M20 22 5 60
