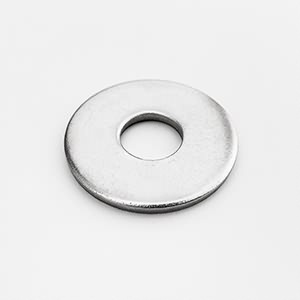

Large Washer DIN9021

Large Washer DIN9021
  • Item Number: 575
  • Size: M3-M30
  • Material: AISI304 / AISI316
  • Product Description: Large washer DIN9021 can increase the contact area between the screw and the machine and eliminate the damage of the spring pad to the machine surface when the screw is unloaded.
Product Specifications
Large Washer DIN9021 Drawing
Size ΦA T D
mm mm mm mm
M3 3.2 0.8 9
M4 4.3 1 12
M5 5.3 1.2 15
M6 6.4 1.5 18
M8 8.4 2 24
M10 10.5 2.5 30
M12 13 3 37
M14 15 3 44
M16 17 3 50
M18 20 4 56
M20 22 4 60
M22 24 5 66
M24 26 5 72
M27 30 6 85
M30 33 6 92
