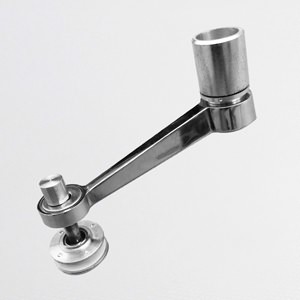

Spider With One Long Arm

Spider With One Long Arm
  • Item Number: 903
  • Size: 200mm-300mm
  • Material: AISI304 / AISI316
  • Product Description: Spider with one long arm is mainly used to connect routels and connectors in glass curtain wall systems, and transmit loads to fixed supporting structural systems. They are a key accessory for connecting glass curtain walls.
Product Specifications

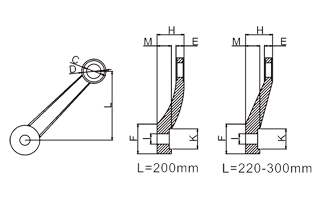

Spider With One Long Arm Drawing
Size L H M E D C F I K
mm mm mm mm mm mm mm mm mm mm
200 100 50 24 12 45 26 45 18 37
220 110 50 25 14 45 26 50 18 37
250 125 50 25 15 45 26 50 18 37
300 150 50 32 18 45 26 60 20 37
