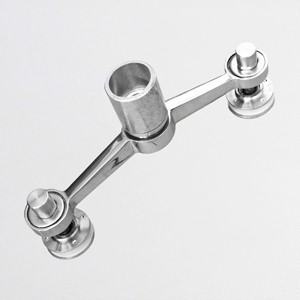

Spider With 2 Arms 180°

Spider With 2 Arms 180°
  • Item Number: 904
  • Size: 200mm-300mm
  • Material: AISI304 / AISI316
  • Product Description: Spider with 2 arms 180° is mainly used to connect routels and connectors in glass curtain wall systems, and transmit loads to fixed supporting structural systems. They are a key accessory for connecting glass curtain walls.
Product Specifications
Spider With 2 Arms 180° Drawing
Size L H M E D C F I K
mm mm mm mm mm mm mm mm mm mm
200 200 50 24 12 45 26 45 18 37
220 220 40 25 14 45 26 50 18 37
250 250 40 25 15 45 26 50 18 37
300 300 50 32 18 45 26 60 20 37
