NOTE
※ Please be aware that there may be deviation and tolerance in noted measurements.
※ The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
※ Specifications may change without prior notification.
※ Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
※ Please do not copy and reproduce the contents of our website without any express permission.

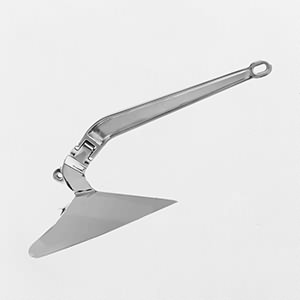

Plough Anchor

- Item Number: 830
- Size: 5kg-80kg
- Material: AISI316
- Product Description: Plough anchor makes your anchoring experience easier with its innovative self-launching design. The plough anchor’s low center of gravity, shank profile, and ballasted tip allows it to set itself and set immediately. With its self-righting technology, plough anchor sets correctly and can reset itself if necessary.
Product Specifications
| Size(Weight) | A | B | C | H |
|---|---|---|---|---|
| kg | mm | mm | mm | mm |
| 5 | 470 | 242 | 350 | 252 |
| 7 | 504 | 265 | 395 | 250 |
| 9 | 571 | 290 | 420 | 305 |
| 10 | 575 | 298 | 423 | 305 |
| 12 | 650 | 298 | 423 | 305 |
| 15 | 687 | 325 | 558 | 355 |
| 16 | 687 | 325 | 558 | 355 |
| 20 | 713 | 375 | 560 | 355 |
| 22 | 720 | 360 | 560 | 355 |
| 27 | 780 | 405 | 605 | 393 |
| 34 | 835 | 645 | 653 | 465 |
| 35 | 810 | 395 | 695 | 425 |
| 40 | 810 | 645 | 653 | 450 |
| 50 | 965 | 540 | 745 | 500 |
