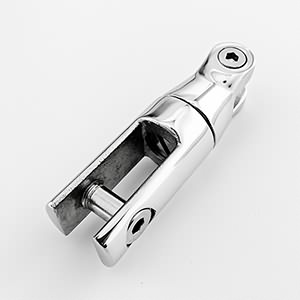

Swivel Anchor Connector
- Item Number: 826
- Size: 6mm-16mm
- Material: AISI316
- Product Description: Swivel Anchor Connector
Product Introduction

Size(ChainΦ) | A | B | C | D | E | F | L |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm |
6-8 | 10.5 | 15.5 | 8 | 10 | 10 | 23 | 91 |
10-12 | 13 | 18 | 12 | 12 | 12 | 27.5 | 116 |
14-16 | 18 | 31 | 14 | 16 | 17 | 31 | 141 |
