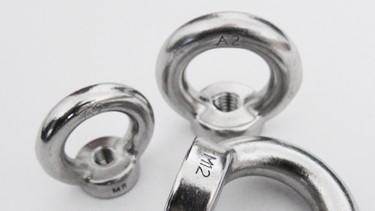

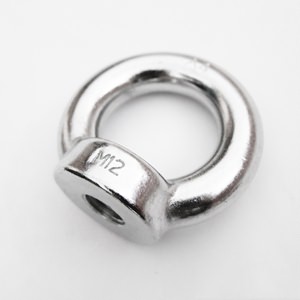

Lifting Eye Nut DIN582
- Item Number: 502
- Size: M6-M36
- Material: AISI304 / AISI316
- Product Description: Lifting eye nut DIN582 is the most widely used kind of rigging hardware and specifically suited for lifting some heavy objects like machine, furniture, electric motor, metal mold, distribution panel, appliance...
Product Introduction


d1 | d2 | d3 | d4 | h | e | ΦD | BL | WT |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | kg | kg |
M6 | 17 | 28 | 16 | 30 | 8 | 6 | 1300 | 0.023 |
M8 | 20 | 35 | 20 | 35 | 8 | 8 | 2400 | 0.043 |
M10 | 25 | 45 | 25 | 44 | 10 | 10 | 4000 | 0.080 |
M12 | 29 | 53 | 30 | 52 | 12 | 12 | 5400 | 0.136 |
M14 | 30 | 53 | 30 | 52 | 11 | 12 | - | 0.126 |
M16 | 35 | 63 | 35 | 62 | 16 | 14 | 9000 | 0.234 |
M18 | 37 | 67 | 37 | 66 | 17 | 15 | - | 0.282 |
M20 | 40 | 71 | 40 | 70 | 18 | 16 | 13000 | 0.340 |
M24 | 47 | 87 | 48 | 87 | 18 | 20 | 18000 | 0.558 |
M30 | 55 | 104 | 54 | 104 | 30 | 25 | 26000 | 1.053 |
M36 | 75 | 126 | 70 | 126 | 30 | 28 | - | 2.080 |
