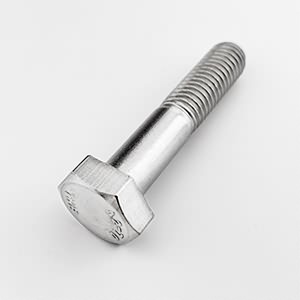

Hexagon Head Bolt Partially Threaded DIN931

Item Number: 536
Size: M4-M36
Material: AISI304 / AISI316
Product Description: Hexagon head bolt partially threaded DIN931 is suitable for all interior and exterior applications. Need socket wrench when using it.

Product Specifications

Hexagon Head Bolt Partially Threaded DIN931 Drawing

Size(A)	E	S	K	B	B	B
mm	mm	mm	mm	mm	mm	mm
M4	7.7	7	2.8	14	-	-
M5	8.8	8	3.5	16	22	-
M6	11	10	4	18	24	-
M8	14.4	13	5.3	22	28	-
M10	18.9	17	6.4	26	32	45
M12	21.1	19	7.5	30	36	49
M14	24.5	22	8.8	34	40	53
M16	26.8	24	10	38	44	57
M20	33.5	30	12.5	46	52	65
M24	40	36	15	54	60	73
M30	50.9	46	18.7	66	72	85
M36	60.8	55	22.5	78	84	97
