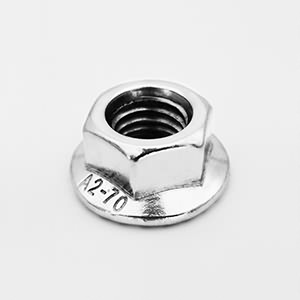

Hexagon Flange Nuts with Serration DIN6923

- Item Number: 564
- Size: M3-M20
- Material: AISI304 / AISI316
- Product Description: Hexagon flange nuts with serration DIN6923 has a wide flange at one end that acts as an integrated, non-spinning washer,the serrations help in avoiding vibration of nut and increase the holding power of nut. Need socket wrench when using it.
Product Specifications
| Size(A) | S | D | H |
|---|---|---|---|
| mm | mm | mm | mm |
| M3 | 5.5 | 8 | 3.7 |
| M4 | 7 | 10 | 4.5 |
| M5 | 8 | 11.8 | 5 |
| M6 | 10 | 14.2 | 6 |
| M8 | 13 | 17.9 | 8 |
| M10 | 15 | 21.8 | 10 |
| M12 | 18 | 26 | 12 |
| M14 | 21 | 29.9 | 14 |
| M16 | 24 | 34.5 | 16 |
| M20 | 30 | 42.8 | 20 |
