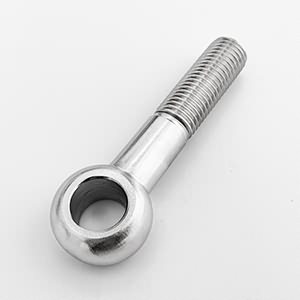

DIN444 Eye Bolt

DIN444 Eye Bolt
  • Item Number: 552
  • Size: M5-M30
  • Material: AISI304 / AISI316
  • Product Description: Din444 eye bolt is widely used in marine, automobile, machine, industrial, architectural... The threaded part can be moved freely while its heade fixed by shaft pin.
Product Specifications
DIN444 Eye Bolt Drawing
Size(A) D Φd S B (L≤125) B (125<L≤200) B (L>200)
mm mm mm mm mm mm mm
M5 12 5 6 16 - -
M6 14 6 7 18 - -
M8 18 8 9 22 28 -
M10 20 10 12 26 32 -
M12 25 12 14 30 36 49
M16 32 16 17 38 44 57
M20 40 18 22 46 52 65
M24 45 22 25 54 60 73
M30 55 27 30 66 72 85
