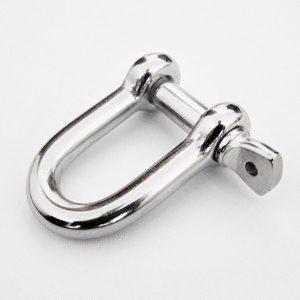

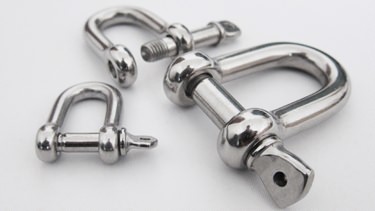

Dee Shackle
- Item Number: 303
- Size: M4-M32
- Material: AISI304 / AISI316
- Product Description: Dee shackle is the most widely used kind of rigging hardware because of its reasonable design and lower price. Usually we have a large inventory of them. It's made by forging, so it offers a greater load strength.
Product Introduction


Size(M) | C | H | W | D | BL | WT |
---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | kg | kg |
M4 | 4 | 15 | 8 | 8 | 500 | 0.008 |
M5 | 5 | 16 | 10 | 10 | 800 | 0.014 |
M6 | 6 | 21 | 12 | 12 | 1100 | 0.025 |
M8 | 8 | 28 | 16 | 16 | 2000 | 0.057 |
M10 | 10 | 33 | 20 | 20 | 3200 | 0.109 |
M12 | 12 | 41 | 24 | 24 | 4400 | 0.181 |
M14 | 13.5 | 50 | 28 | 28 | 5600 | 0.296 |
M16 | 16 | 58 | 32 | 32 | 8000 | 0.439 |
M20 | 19 | 61 | 37 | 40 | 10000 | 0.728 |
M22 | 21 | 77 | 44 | 44 | 15000 | 1.181 |
M25 | 24 | 87 | 51 | 50 | 20000 | 1.741 |
M28 | 28 | 100 | 59 | 56 | 25000 | 2.408 |
M30 | 30 | 102 | 62 | 60 | 28000 | 3.131 |
M32 | 31 | 114 | 64 | 64 | 32000 | 3.630 |
