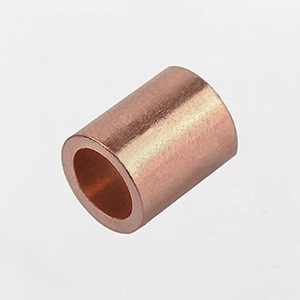

Copper Stop Sleeve

Item Number: 134
Size: 3/64"-5/16"
Material: Copper
Product Description: Copper stop sleeve can fit wire sizes from 3/64" to 5/16" for every project. Please choose the corresponding specifications according to the diameter of the wire rope.

Product Specifications

RopeΦ	A	S	L	WT
inch	mm	mm	mm	kg/1000PCS
3/64	1.54	1.39	5.56	0.670
1/16	1.98	1.59	5.56	0.960
3/32	2.78	2.78	8.33	3.900
1/8	3.97	2.18	8.33	3.300
5/32	4.76	2.98	8.33	6.500
3/16	5.56	2.58	8.33	6.200
7/32	6.35	2.19	15.88	8.500
1/4	7.14	4.77	17.46	32.000
5/16	9.53	3.57	17.46	29.000
