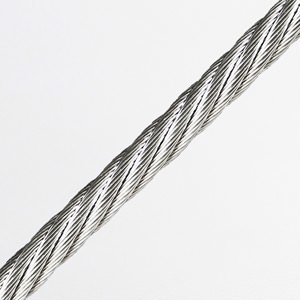

Wire Rope 7x19

Item Number: 121
Size: 1mm-20mm
Material: AISI304 / AISI316
Product Description: The 7x19 construction stainless steel wire rope is highly flexible, so they work very well with wire rope clips and thimbles. They are suitable for most running load applications & numerous applications such as security cables & winch cables.

Product Specifications


	Packed with Reel	Packed in Coil	PVC Coated

Diameter	BL	WT	Price/meter
mm	kg	kg/100m	SS304	SS316
1	66	0.410	$0.30	$0.46
1.5	157	0.923	$0.17	$0.26
2	265	1.630	$0.18	$0.27
2.5	402	2.550	$0.25	$0.37
3	530	3.680	$0.28	$0.41
4	940	6.530	$0.44	$0.66
5	1470	10.210	$0.64	$0.96
6	2880	14.500	$0.88	$1.32
8	3760	26.140	$1.53	$2.29
10	5210	40.840	$2.38	$3.57
12	7500	58.810	$3.37	$5.06
14	10200	80.050	$4.59	$6.89
16	13300	103.000	$6.00	$9.00
20	20800	160.000	$9.37	$14.26
