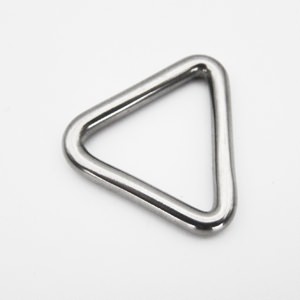

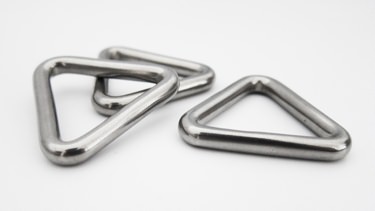

Welded Triangle Ring

Item Number: 609
Size: 3mm-8mm
Material: AISI304 / AISI316
Product Description: Welded triangle ring is widely used for marine, sports, climbing, architectural, industrial, security... The surface has been grinding treated, weld marks are not obvious.

Product Specifications

Size	Φd	A	WT
mm	mm	mm	kg
3×30	3	30	0.005
3×35	3	35	0.006
4×35	4	35	0.012
4×40	4	40	0.013
5×35	5	35	0.019
5×40	5	40	0.021
5×45	5	45	0.023
6×40	6	40	0.031
6×45	6	45	0.034
6×50	6	50	0.038
8×45	8	45	0.063
8×50	8	50	0.070
