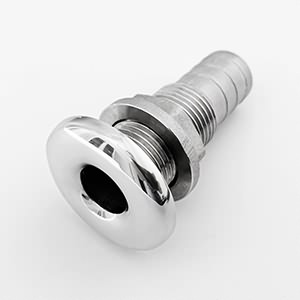

Thru-hull with Hose Connection
- Item Number: 863
- Size: 1/2“ - 2”
- Material: AISI316
- Product Description: Thru-hull with hose connection is a metal device composed of a threaded tube and washers. It connects pump hoses, outlets, sensors or other instruments or machinery within the hull to the exterior. It can be situated below or above the waterline.
| Size | A | B | C | D | E |
|---|---|---|---|---|---|
| inch | mm | mm | mm | mm | mm |
| 1/2" | 58 | 35 | 16.5 | 14 | 31 |
| 3/4" | 63 | 40 | 21 | 18.5 | 33 |
| 7/8" | 75 | 49 | 26.2 | 23 | 42 |
| 1" | 78 | 54 | 33 | 26 | 43 |
| 1-1/4" | 85 | 57 | 42 | 33.5 | 47 |
| 1-1/2" | 85 | 63 | 42 | 39.5 | 47 |
| 1-3/4" | 87 | 71 | 49 | 46 | 48 |
| 2" | 100 | 85 | 59 | 52 | 50 |
