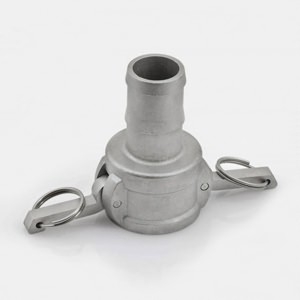

Shank Coupler (C-type)

Item Number: 803
Size: 15mm-150mm
Material: AISI304 / AISI316
Product Description: Shank coupler (C-type) quick connector has two pull ears, belonging to the female head. One end is directly connected to the male head, and the other end is directly inserted into a hose (rubber tube). Therefore, the C-type quick connector can also be called a rubber tube quick connector or a hose quick connector.

Product Specifications

Size	d0	D	H	h1	G
mm	mm	mm	mm	mm	mm
15	14	20	86	33	53
20	14	20	86	33	53
25	20	26	95	39	62
32	25	33	105	45	80
40	32	40	111	47	87
50	43	52	130	52	97
65	55	65	145	55	110
80	67	77	160	56	135
100	92	103	170	58	165
125	115	130	187	62	185
150	140	155	214	72	220
