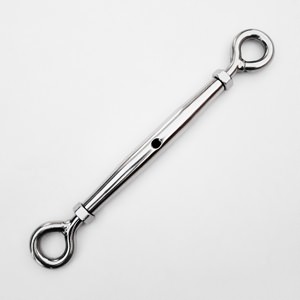

Pipe Turnbuckle Eye And Eye

Item Number: 216
Size: M5-M20
Material: AISI304 / AISI316
Product Description: Turnbuckle is the most widely used kind of rigging hardware and specifically suited for adjusting the tension and length of stainless steel wire rope, balustrade systems and other tension methods.

Product Specifications

Size(A)	B	L	F	BL	Price
mm	mm	mm	mm	kg	SS304	SS316
M5	80	140	11	700	$1.10	$1.60
M6	90	160	11	1600	$1.40	$1.90
M8	110	198	15	2800	$1.70	$2.40
M10	120	226	15	4000	$2.60	$3.70
M12	150	278	20	5000	$4.10	$5.80
M16	190	346	26	6500	$9.00	$12.60
M20	220	420	30	9000	$18.60	$26.00
