* Please be aware that there may be deviation and tolerance in noted measurements.
* The breaking load is approximate, and will change depending on usage situation and environment. In addition, in the event test data is required, please make a separate request, and extra cost will be generated.
* Specifications may change without prior notification.
* Photos could show our products very clearly, but there may be a little difference in style because of different specifications.
* Please do not copy and reproduce the contents of our website without any express permission.

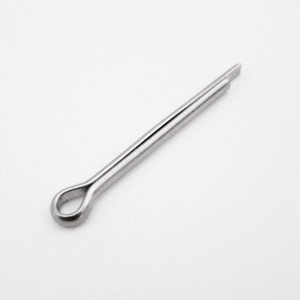

Cotter Pins
- Item Number: 608
- Size: 0.6mm-12mm
- Material: AISI304 / AISI316
- Product Description: Cotter pin is a metal fastener with two tines that are bent during installation, frequently used to secure other fasteners such as clevis pin.
Product Introduction

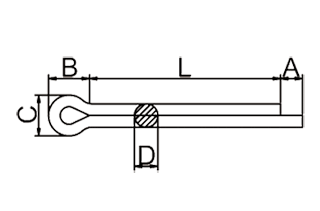

| Size | ΦD(max) | C(max) | B | A(max) | L |
|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm |
| 0.6 | 0.5 | 1 | 2 | 1.6 | 4-12 |
| 0.8 | 0.7 | 1.4 | 2.4 | 1.6 | 5-16 |
| 1 | 0.9 | 1.8 | 3 | 1.6 | 6-20 |
| 1.2 | 1 | 2 | 3 | 2.5 | 8-26 |
| 1.6 | 1.4 | 2.8 | 3.2 | 2.5 | 8-32 |
| 2 | 1.8 | 3.6 | 4 | 2.5 | 12-50 |
| 2.5 | 2.3 | 4.6 | 5 | 2.5 | 12-50 |
| 3.2 | 2.9 | 5.8 | 6.4 | 3.2 | 14-65 |
| 4 | 3.7 | 7.4 | 8 | 4 | 18-80 |
| 5 | 4.6 | 9.2 | 10 | 4 | 22-100 |
| 6.3 | 5.9 | 11.8 | 12.6 | 4 | 30-120 |
| 8 | 7.5 | 15 | 16 | 4 | 40-160 |
| 10 | 9.5 | 19 | 20 | 6.3 | 45-200 |
| 12 | 11.4 | 24.8 | 26 | 6.3 | 70-200 |
