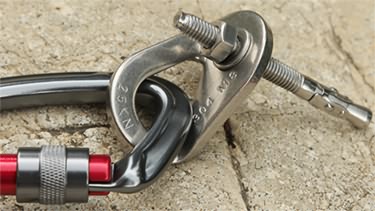

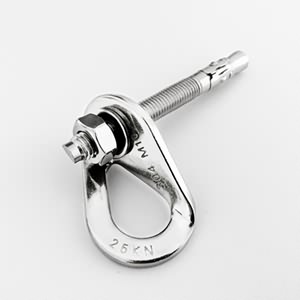

Climbing Anchor Hanger
- Item Number: A22
- Size: M8-M12
- Material: SUS304/SUS316
- Product Description: Climbing anchor hanger is made from high-grade stainless steel, which are impervious to rust and corrosion. With a thickness up to 5mm, they could withstand a tensile force of 25KN-30KN. Designed for use both indoors and outdoors, these climbing anchors are suitable for a wide range of climbing situations and safety applications, providing a secure anchor point for your rope.
| Size(A) | B | T | L | D | WT | BL | Price | |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kg | KN | SS304 | SS316 |
| M8 | 60 | 5 | 80 | 7.8 | 0.100 | 25 | $1.20 | $2.00 |
| M10 | 60 | 5 | 100 | 9.8 | 0.125 | 25 | $1.50 | $2.50 |
| M12 | 60 | 5 | 100 | 11.8 | 0.150 | 30 | $1.80 | $3.00 |
