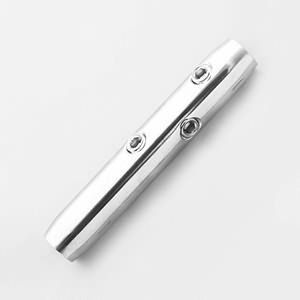

Terminal with Screws

Terminal with Screws
  • Item Number: 125
  • Size: 3mm-5mm
  • Material: AISI304 / AISI316
  • Product Description: Terminal with screws can be optimally used as a connecting element to tension stainless steel cables between two fastening points. Due to the option of self-assembly being available, the exact length of the steel cable does not have to be decided upon in advance, but rather can be individually adapted to the conditions on site.
Product Specifications
Terminal with Screws Drawing
RopeΦ L D d L1 M Screw
mm mm mm mm mm mm mm
3 80 12 3.4 40 M6 M6
4 80 12 4.3 40 M6 M6
5 80 12 5.3 40 M6 M6
