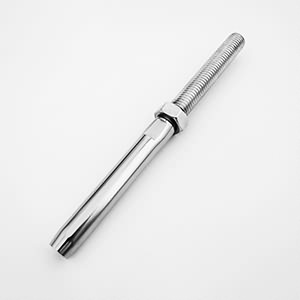

Swage Stud

Swage Stud
  • Item Number: 114
  • Size: 3mm-10mm
  • Material: AISI304 / AISI316
  • Product Description: Threaded swage studs are used to put tension onto a wire, either with the help of locking nuts or as part of a rigging screw or turnbuckle.
Product Specifications
Swage Stud Drawing

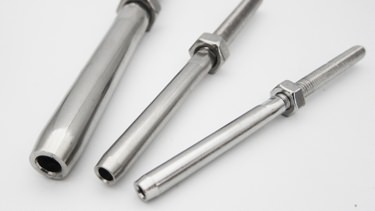

Swage Stud Detail
RopeΦ A B L
mm mm mm mm
3 M6 45 100
4 M8 53 117
5 M10 60 130
6 M12 76 162
8 M16 100 195
10 M20 115 230
