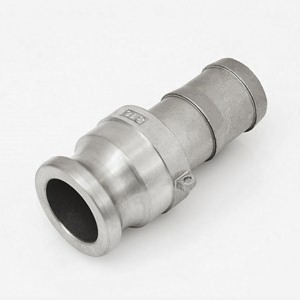

Shank Adapter (E-type)

Shank Adapter (E-type)
  • Item Number: 805
  • Size: 15mm-150mm
  • Material: AISI304 / AISI316
  • Product Description: Shank Adapter (E-type) quick connector is a male connector that does not have a lug. It is usually used in conjunction with a quick connector with a lug to achieve quick connection and quick disassembly. One end of the connector is directly connected to the female head, while the other end is directly inserted into the leather tube or hose.
Product Specifications
Shank Adapter Drawing
Size d0 C H D h1
mm mm mm mm mm mm
15 14 33 50 20 40
20 14 33 51 20 40
25 20 38 61 26 46
32 25 48 68 33 52
40 31 55 69 39 56
50 43 65 77 52 62
65 55 80 84 65 65
80 67 102 87 77 66
100 92 132 90 102 68
125 115 154 102 130 71
150 140 184 118 155 78
