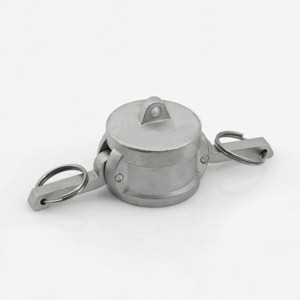

Dust Cap (DC-type)

- Item Number: 808
- Size: 15mm-150mm
- Material: AISI304 / AISI316
- Product Description: Dust cap (DC-type) quick connector is a female connector with two pull ears on each side. It only has one end connected directly and the other end is in the form of a plug, which is a new type of plug.
Product Specifications
| Size | G | H | h1 |
|---|---|---|---|
| mm | mm | mm | mm |
| 15 | 53 | 45 | 35 |
| 20 | 53 | 45 | 35 |
| 25 | 62 | 50 | 40 |
| 32 | 80 | 57 | 47 |
| 40 | 87 | 60 | 50 |
| 50 | 97 | 68 | 55 |
| 65 | 110 | 70 | 58 |
| 80 | 135 | 75 | 60 |
| 100 | 165 | 80 | 62 |
| 125 | 185 | 94 | 70 |
| 150 | 220 | 112 | 82 |
