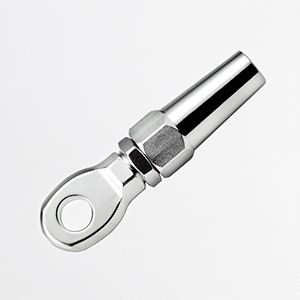

Quick Attach Eye Terminal

Quick Attach Eye Terminal
  • Item Number: 127
  • Size: Φ3-Φ16
  • Material: AISI304 / AISI316
  • Product Description: Quick attach eye terminal is the arrangement of wedges on outside of the cable which makes assembly much easier and allows different types of wire to be used with the same fitting. It's ideal for repair of rigging without swaging and for many other industrial, or architectural uses where the exact length of the cable cannot be determined beforehand or where assembly needs to take place on-site.
Product Specifications
Quick Attach Eye Terminal Drawing
RopeΦ A L ΦD Thickness
mm mm mm mm mm
3 M6 50 6.3 5.5
4 M6 58 8.8 7
5 M8 70 10.3 8
6 M10 84 13 9
8 M12 103 14.5 10
10 M16 116 16.2 13
12 M20 137 19.5 15
14 M22 160 22 18
16 M24 170 25 20
