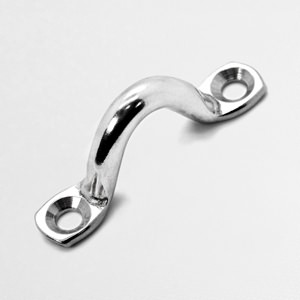

Wire Eye Strap

Wire Eye Strap
  • Item Number: 701
  • Size: 4mm-10mm
  • Material: AISI304 / AISI316
  • Product Description: Wire eye strap is commonly used as deck fittings on boats and yachts, hard-wearing and versatile with uses ranging from vehicle trailers to home DIY.
Product Specifications
Wire Eye Strap Drawing

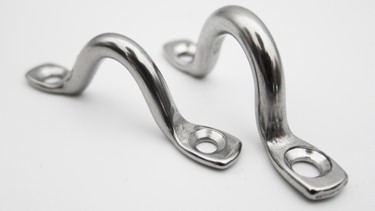

Wire Eye Strap Detail
Size(ΦD) A H L Price
mm mm mm mm SS304 SS316
4 3.2 16 32 $0.12 $0.15
5 4.2 17.5 40 $0.15 $0.18
6 5.2 22.5 45 $0.18 $0.23
8 5.2 23 50 $0.34 $0.45
10 8.2 28 62 $0.62 $0.80
