Welded Round Ring

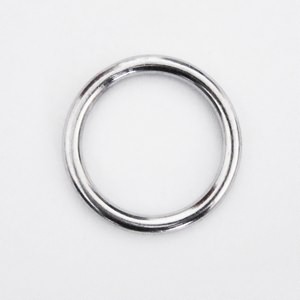

Welded Round Ring
  • Item Number: 601
  • Size: 5mm-10mm
  • Material: AISI304 / AISI316
  • Product Description: Welded round ring is widely used for marine, sports, climbing, architectural, industrial, security... The surface has been grinding treated, weld marks are not obvious.
Product Specifications
Welded Round Ring Drawing

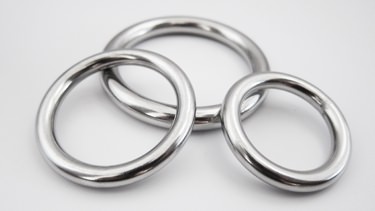

Welded Round Ring Detail
Size ΦS H WT
mm mm mm kg
5×25 5 25 0.010
5×30 5 30 0.010
5×35 5 35 0.020
5×40 5 40 0.020
5×45 5 45 0.030
5×50 5 50 0.030
6×30 6 30 0.020
6×35 6 35 0.030
6×40 6 40 0.030
6×45 6 45 0.040
6×50 6 50 0.040
6×55 6 55 0.040
6×60 6 60 0.050
8×40 8 40 0.060
8×45 8 45 0.060
8×50 8 50 0.070
8×55 8 55 0.070
8×60 8 60 0.080
8×65 8 65 0.090
8×70 8 70 0.090
8×75 8 75 0.100
9×50 9 50 0.090
9×60 9 60 0.100
9×70 9 70 0.120
9×80 9 80 0.140
10×50 10 50 0.100
10×60 10 60 0.130
10×70 10 70 0.150
10×80 10 80 0.170
10×90 10 90 0.190
10×100 10 100 0.210
